One Touch Tube Fittings with O-ring (G, BSPP) – Grey Body

Our elegant and clean grey one touch tube fittings with O-ring can accommodate metric tubing O.D from 4mm to 16mm and inch tubing O.D from 1/8″ to 1/2″. Captive O-ring is put on the thread for pefect sealing. Working pressure from 0~1.0Mpa (0~150psi), Working temperature from 0~60ºC (32~140ºF).

Part Color of Grey One Touch Tube Fittings with O-ring

  • Release Sleeve: Grey
  • Body: Grey
  • Thread: Nickel Plated Brass
 Fluid Admitted Air, Vacuum, Water (no freezing)
 Working Pressure 0—1.0 MPa | 0—150 psi
 Proof Pressure 3.0 Mpa | 435 psi
 Negative Pressure -100 Kpa | -29.5 In Hg
 Working Temperature 0—60°C | 32～140°F
 Applicable Tube PU / PA / PE / PVC

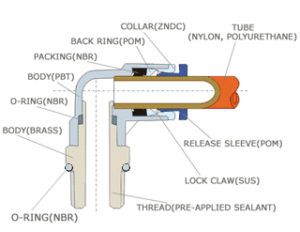

 Body Nickel Plated Brass and PBT
 Seal, O-ring NBR
 Lock Claw Stainless Steel(SUS)
Metric Tube ØD
4mm 5mm 6mm 7mm 8mm 9mm 10mm 12mm 14mm 15mm 16mm
Inch Tube ØD
1/8″ 5/32″ 3/16″ 1/4″ 5/16″ 3/8″ 1/2″
Thread Standard and Type
G, BSP, BSPP — 55° Taper Pipe Thread
G1/8 G1/4 G3/8 G1/2

Note: Composite push in fittings are only applicable for general industrial water

push-in-fitting-with-o-ring-g-bsp-bspp-thread-male-straight-connector-pc
WPC-G Male Straight Connector
push-in-fitting-with-o-ring-g-bsp-bspp-thread-poc
WPOC-G Internal Hexagon Male Connector
push-in-fitting-with-o-ring-g-bsp-bspp-thread-male-elbow-pl
WPL-G Male Elbow
push-in-fitting-with-o-ring-g-bsp-bspp-thread-extended-male-elbow-pll
WPLL-G Extended Male Elbow
push-in-fitting-with-o-ring-g-bsp-bspp-thread-female-elbow-plf
WPLF-G Female Elbow
push-in-fitting-with-o-ring-g-bsp-bspp-thread-female-straight-connector-pcf
WPCF-G Female Straight Connector
push-in-fitting-with-o-ring-g-bsp-bspp-thread-male-branch-tee-pb
WPB-G Male Branch Tee
push-in-fitting-with-o-ring-g-bsp-bspp-thread-female-branch-tee-pbf
WPBF-G Female Branch Tee
push-in-fitting-with-o-ring-g-bsp-bspp-thread-male-run-tee-pd
WPD-G Male Run Tee
push-in-fitting-with-o-ring-g-bsp-bspp-thread-female-run-tee-pdf
WPDF-G Female Run Tee
push-in-fitting-with-o-ring-g-bsp-bspp-thread-male-y-px
WPX-G Male Y
push-in-fitting-with-o-ring-g-bsp-bspp-thread-female-y-pxf
WPXF-G Female Y
push-in-fitting-with-o-ring-g-bsp-bspp-thread-male-triple-branch-pkb
WPKB-G Triple Male Branch
push-in-fitting-with-o-ring-g-bsp-bspp-thread-female-bulkhead-straight-connetor-pmf
WPMF-G Bulkhead Female Connector
push-in-fitting-with-o-ring-g-bsp-bspp-thread-male-banjo-ph
WPH-G Male Banjo Elbow
push-in-fitting-with-o-ring-g-bsp-bspp-thread-female-banjo-phf
WPHF-G Female Banjo Elbow
