Misting System Fittings

misting-system-fittingsslip-locks misting system fittings, as the name describes, slip together and lock. In the misting industry these fittings are made of of nickel plated brass. The tubing used is high pressure nylon. The locking occurs under pressure. The greater the pressure the harder they lock.

With the push to connect style fittings, you can install the misting system fast and easy. you just push the Nylon tubing into the fitting and it instantly locks into place ensuring a watertight seal. Unlike compression style fittings found on other misting systems, there are no fittings to tighten with a wrench and you don’t have to worry about perfectly lining up the tubing inside the fitting.

There are several different slip-lock fittings available. They consist of coupling union, unions with 10-24 UNC, 10-32 UNF, M5, M6 to connect a nozzle, Tees, Ells, Ends with 10-24 UNC, 10-32 UNF, M5, M6.

The fittings include a heavy duty body, thicker locking ferrule, and an over sized NBR o-ring. The unique design of these fittings allows them to be easily removed, replaced, or re-installed any time after the initial installation. No special tools or crimping procedures are required.

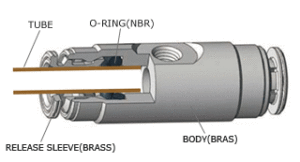

misting-fittings
Fluid Admitted Air,Vacuum
 Working Pressure 0—10.0 MPa |0—1450 psi
 Working Temperature -20—120°C | -4～248°F
 Applicable Tube PU / PA / Teflon Tubing
 Body Nickle Plated Brass
 Seal, O-ring NBR
Metric Tube ØD
6mm 10mm



Inch Tube ØD
1/4″ 3/8″



Thread Type and Size
UNC UNF Metric Thread
10-24 UNC 10-32UNF M5 X 0.8 M6 X 1
misting-fittings-coupling-union-with-nozzle-port
BPPM Slip Lock End Fitting
misting-fittings-union-straight-with-nozzle-port
BPPU Slip Lock Coupling Union
