Compact One Touch Fittings

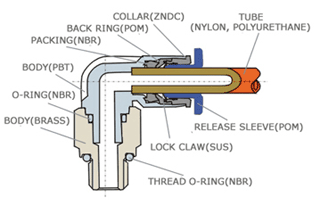

The volume of compact one touch fittings (miniature push in fittings, miniature pneumatic fittings) is 40% less and the outside diameter is 20% less than the standard type pneumatic push-in tube fittings. Compact one touch fittings (mini push in fittings) are specially designed for pneumatic installations in equipments that are small and compact in size. Working pressure from 0~1.0Mpa (0~150psi), Working temperature from 0~60ºC (32~140ºF).

.compact-one-touch-fittings
 Fluid Admitted Air, Vaccum, Water(note)
 Working Pressure 0—1.0MPa | 0—150psi
 Proof Pressure 3.0Mpa | 435psi
 Negative Pressure -100Kpa | -29.5 In Hg
 Working Temperature 0—60°C | 32～140°F
 Applicable Tube PU / PA / PE / PVC
 Body Nickel Plated Brass & PBT
 Seal, O-ring NBR
 Lock Claw Stainless Steel(SUS)

Note: Applicable for general industrial water.

Metric Tube ØD
3mm 4mm 6mm
Thread Standard and Type
M3x0.5 M5x0.8 M6x1.0 R1/8
PC-C
PC-C Male Straight Connector
miniature-compact-one-touch-fittings-round-male-connector
POC-C Round Male Connector
miniature-compact-one-touch-fittings-male-elbow
PL-C Male Elbow
miniature-compact-one-touch-fittings-extended-male-elbow
PLL-C Extended Male Elbow
miniature-compact-one-touch-fittings-male-branch-tee
PB-C Male Branch Tee
miniature-compact-one-touch-fittings-male-run-tee
PD-C Male Run Tee
miniature-compact-one-touch-fittings-union-straight
PU-C Union Straight
miniature-compact-one-touch-fittings-union-elbow
PV-C Union Elbow
miniature-compact-one-touch-fittings-union-straight-reducer
PG-C Union Straight Reducer
miniature-compact-one-touch-fittings-union-tee
PE-C Union Tee
